ANGEL 100
Dental Microscope
Advanced Medical Microscope with 4K & 3D Camera System
Zoom Magnification
- Working Distance
- Magnification
- Dimming
- Focusing Speed
- Zoom Speed
Key Features
Ultra-high resolution 4K camera system for crystal-clear imaging and recording capabilities, ensuring every detail is captured with precision.
Revolutionary 3D camera system for immersive teaching and demonstration with real-time depth perception to enhance learning experiences.
1:6.25 ratio motorized zoom system with magnification range from 0.4X to 2.5X, providing total magnification of 1.7X to 19X.
Natural light LED system with up to 90,000 lux illumination and 90% color rendering for optimal visualization.
Integrated control handle for motorized zoom, dimming, photo/video recording, and electromagnetic lock control.
Clean, harmonized appearance with embedded cables in the cross arm for a neat and professional workspace setup.
ANGEL 100 Dental Microscope
Entry level LED dental microscope for endodontic treatments. The spring arm & optics provide an excellent par-focal, large field of view & precise and clear three-dimensional images.
ANGEL 100 Microscope Description
Alltion microscopes come with many optional accessoires such as beam splitter, rotation devices and cameras that can be purchased later. This microscope is suitable for many medical fields, such as Dental, ENT, General Surgery & Ophthalmology.
The Envy of Microscope-Enhanced Dentistry
The ANGEL 100 has applications across many fields:
- Oral Implant Surgery: The ANGEL 100 offers high level magnification and a crystal clear field of view enabling users to observe the every detail of implants and the implantation area in real time, ensuring accurate placement and helping to avoid damage to surrounding tissue.
- Endodontic Treatment: The ANGEL 100 supports accurate detection and diagnosing of root canal issues, and in performing cleaning and filing operations.
- Oral Surgery: The ANGEL 100 helps accurately locate and manage structures of the mouth including protruding bone spurs, cysts periapical lesions.
- Dental Pulp Treatment: The ANGEL 100 facilitates better observation of dental pulp during treatment.
- Aesthetic Dentistry and Restoration: The ANGEL 100 enhances your ability to perform flawless restorations and other aesthetic procedures.

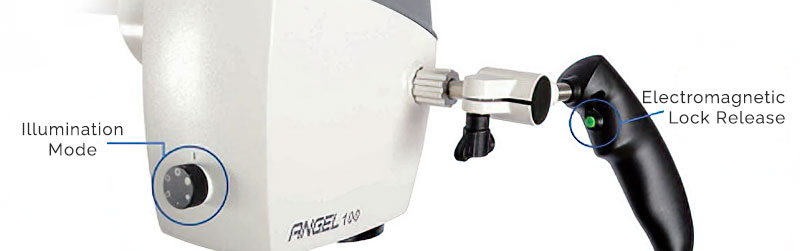

Space Walk” Multi-Function Handle
The Angel 100 is a fusion of utility and aesthetics making it the focal point of any practice. The smooth acton of the balancing arm and weightless feel reduce fatigue and protect occupational longevity.

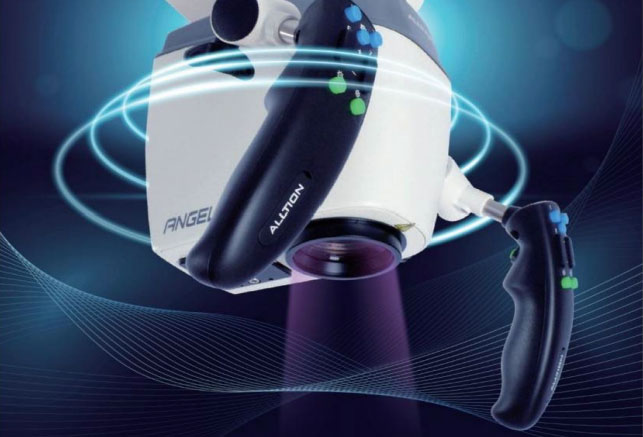

Automatic Anti-Glare
A built-in intermittent light sensor recognizes polarized light path and patterns, and automatically switches to anti-glare mode.

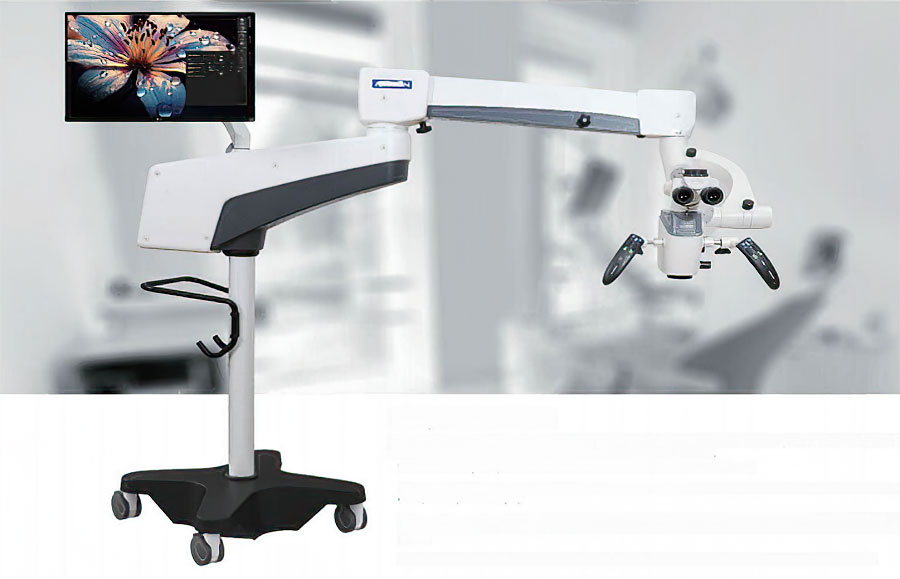

Immersive Experience
The Angel 100 is a fusion of utility and aesthetics making it the focal point of any practice. The smooth acton of the balancing arm and weightless feel reduce fatigue and protect occupational longevity.

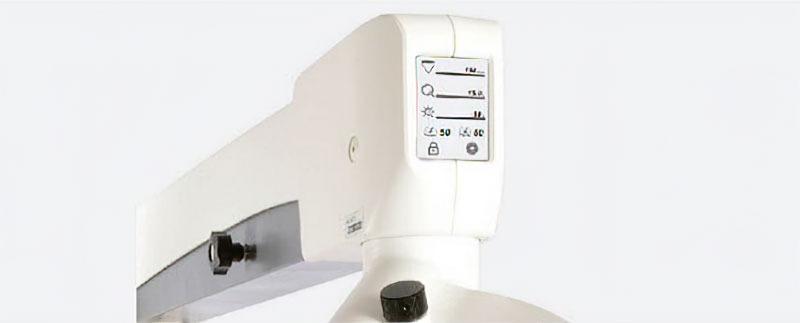

Smart Display
Never guess when it comes to Light Intensity, Magnification Level, or Control Settings.

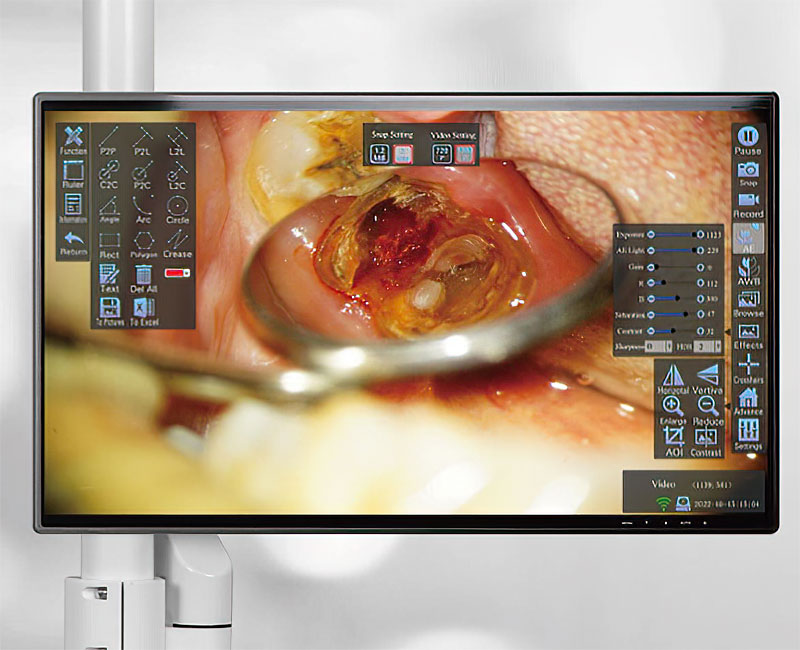

Built-in 4K Camera System
The built-in 4K camera system provides hi-definition images and video transmission. Procedures may be observed in real time and are easily shared with patients and staff. The camera allows for recording and image capture, making it easier to conduct post-operative reviews and enhance provider-patient communication.
ANGEL 100 Microscope Specifications
| Specification | Angel 100 |
|---|---|
| Magnification System |
1) Motorized 1:6.25 ratio zoom, magnification range: 0.4X-2.5X 2) Total magnification 1.7X-19X |
| Eyepiece | Standard: 12.5X/18B, ±7D; (Optional)10X/21B, -8D~+6D |
| Binocular | 0-180° Inclined binocular head with knob of pupillary distance adjustment |
| Range of Interpupillary Distance | 50mm~75mm |
| Objective Lens | Motorized 198~455mm variable objective lens |
| Illumination |
1) Natural light LED 2) Orange/green filter 3) Maximum/medium/minimum light spot |
| Depth of Field Strengthen Device | Integrated depth of field strengthen device |
| Built-in Camera |
1) 4K camera system 2) 3D camera system (optional) |
| Support System |
1) Mobile floor stand 2) 6 joint electromagnetic lock 3) 120° Balance arm |
| Multi-functional Handle |
1) Motorized variable objective lens, Motorized zoom 2) Dimming 3) Photograph/Video Recording 4) One-touch unlock electromagnetic lock 5) Camera custom button |
| Wireless Foot Pedal | Photograph/Video Recording |
| Electromagnetic Lock | Standard |
| Illumination System | Illumination up to 90000Lux, color rendering up to 90% |
| 2D/3D Assistant Scope | Optional |
